HOAC® Mobile Stage
Your vision – our mission
The new modular
HOAC® portable Stage riser – for theatres and concerts
The requirements for constantly changing performances are high. Whether it’s a play today or an orchestra tomorrow, you need sustainable and safe solutions with a concept— the HOAC® aluminum system frame. Our portable and lightweight system is not only reliable but also modularly expandable in length and width. With adjustable designs, almost anything is possible—whether it’s round or sloping stages, riser platforms, orchestra stages, or superstructures for shows.
Made to measure, you get exactly the custom stage you need. It’s easy and quick to assemble or convert without tools, offering elevated capacity and flexible configurations. The system includes guardrails, step lighting, and covers, ensuring maximum safety for both the performers and the audience. From professional production to delivery, our equipment supports a wide array of performance needs, making it the perfect choice for any venue.
Our promise of quality to you
Sustainable
After use the frames can be used for other set ups and products.
Fast & modular
This makes assembly fun. Your stage riser is up and running in no time.
Noiseless
The force-fit and form-fit connection is designed in such a way that noiselessness is guaranteed.
Safety
As a specialist welding company, we manufacture safely in accordance with DIN EN 1090 1-3 and ISO 3834-2.
HOAC® Mobile Stage
Customized, sustainable and completely stress-free.
Start with us into the future of stage technology!
Phone: +49 2841 908280
The Modular Frame System
HOAC® the original
The HOAC® system frame adapts to your needs – whether today, tomorrow or in 1250 days. Just like a modular system, you can build your stage bigger or smaller. The stage will always be the one you need.
The HOAC® frame…
- can be used everywhere – in turntables, stages and grandstands
- is easy to assemble and dismantle – no tools required
- the perfect portable solution for changing needs

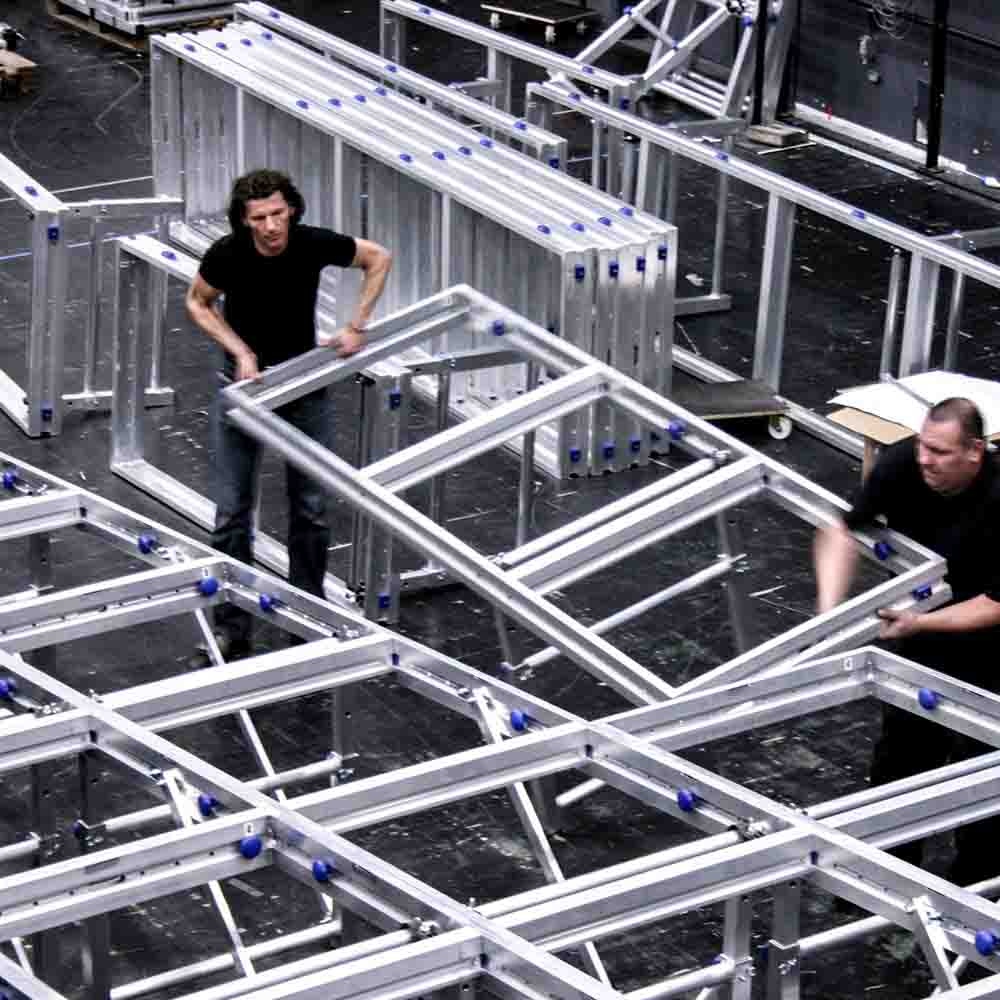

Mobile stage easy to assemble and reassemble
The individual frames for the mobile stage riser are connected to each other with no tools, using only our LinkBlock for a force-locking and form-fit – something that stage technicians also appreciate. After the framework of frames is in place, the top panels and cladding are attached – even faster with Twist2Clad. Optionally, the rails can now be securely clicked into place. The stage is already in place and ready for use.
More options
Choose a category!

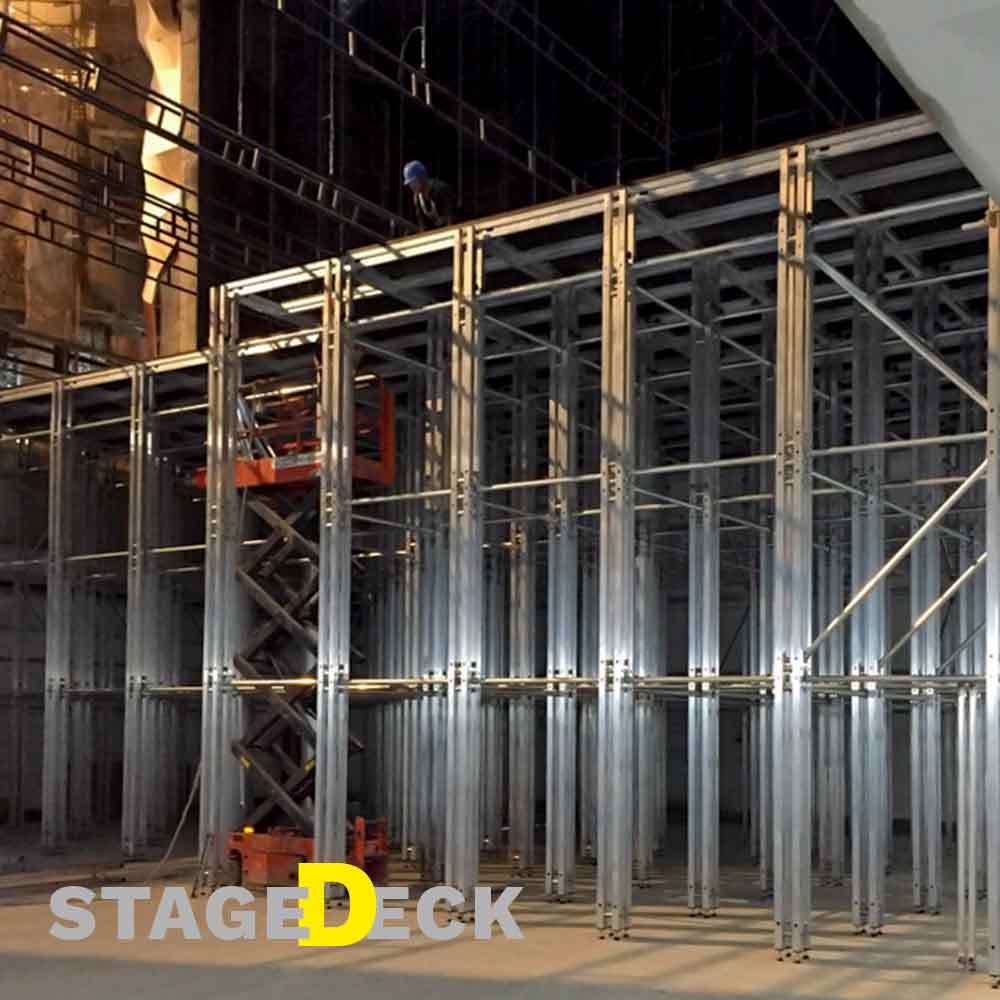

Stage Deck
Stage Deck – the stage for theatres without lift or hubpodium
Your theater has no lift or podium, and you want to remain flexible in order to elevate the actors or create unique stage designs? Then Stage Deck is the solution! With it, we can design stages up to 6 meters high, or even higher if required. Under the stage, the staff can comfortably walk through the new aisle with a height of 2.5 meters and a wide passage of 2.0 meters.
Bühnenschräge

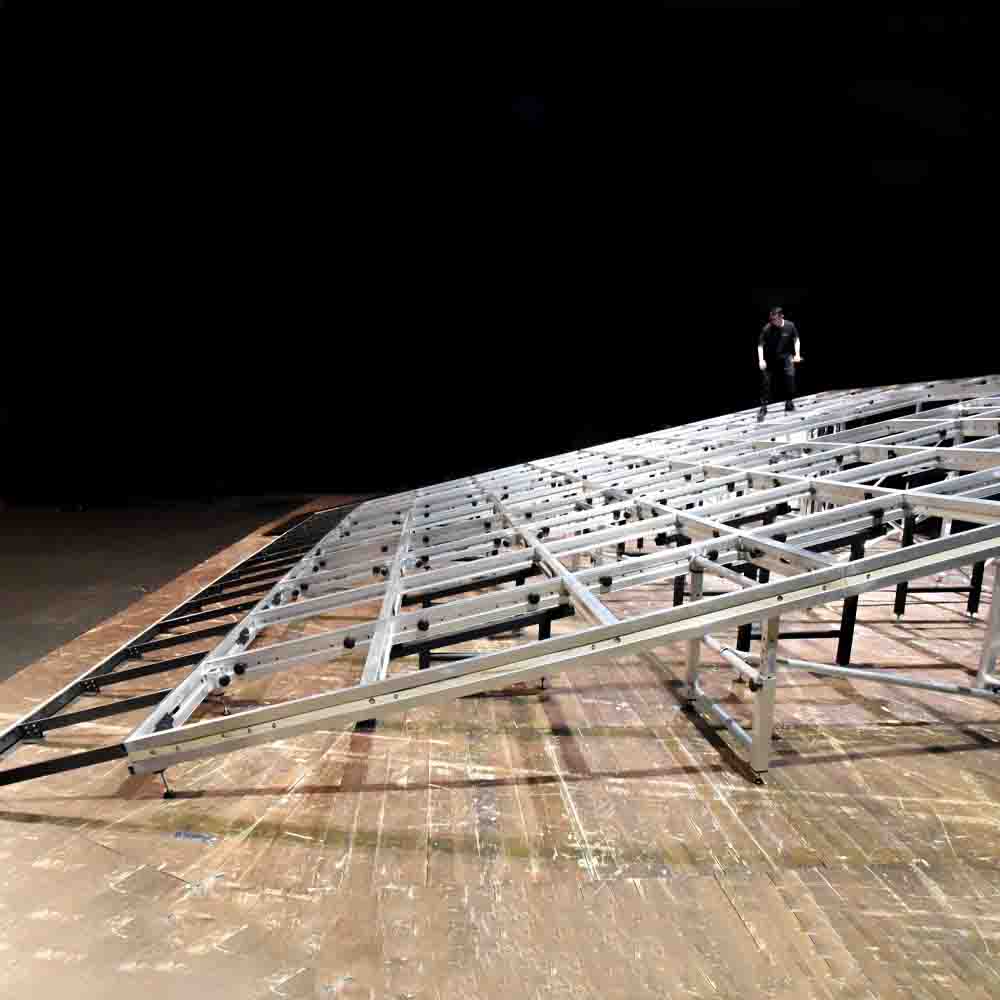

Mobile inclined stage
sloping today, straight tomorrow
Your theater doesn’t have a permanently installed stage slope, but you don’t want to do without it? You don’t have to! With the HOAC® portable stage slope, you can set up and dismantle the stable slope individually for each play, offering an elevated and unique perspective for your audience.
Orchesterbühne

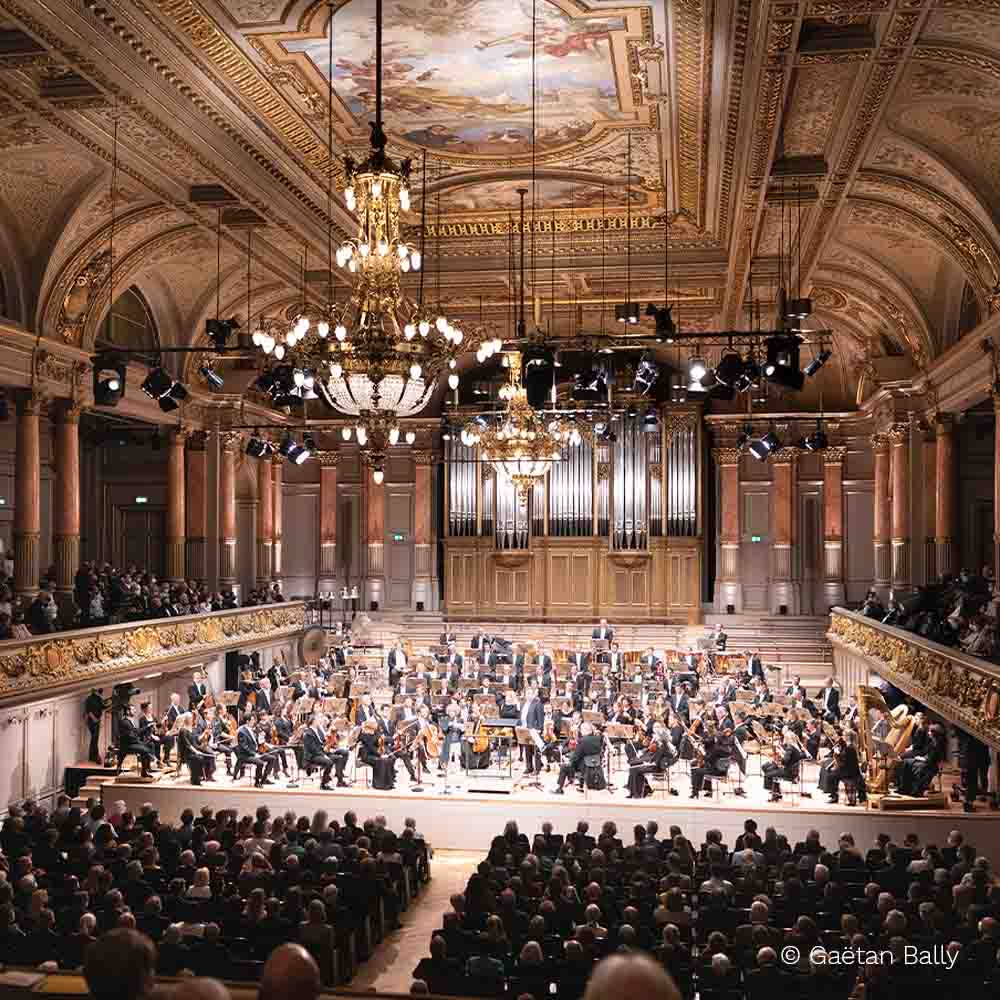

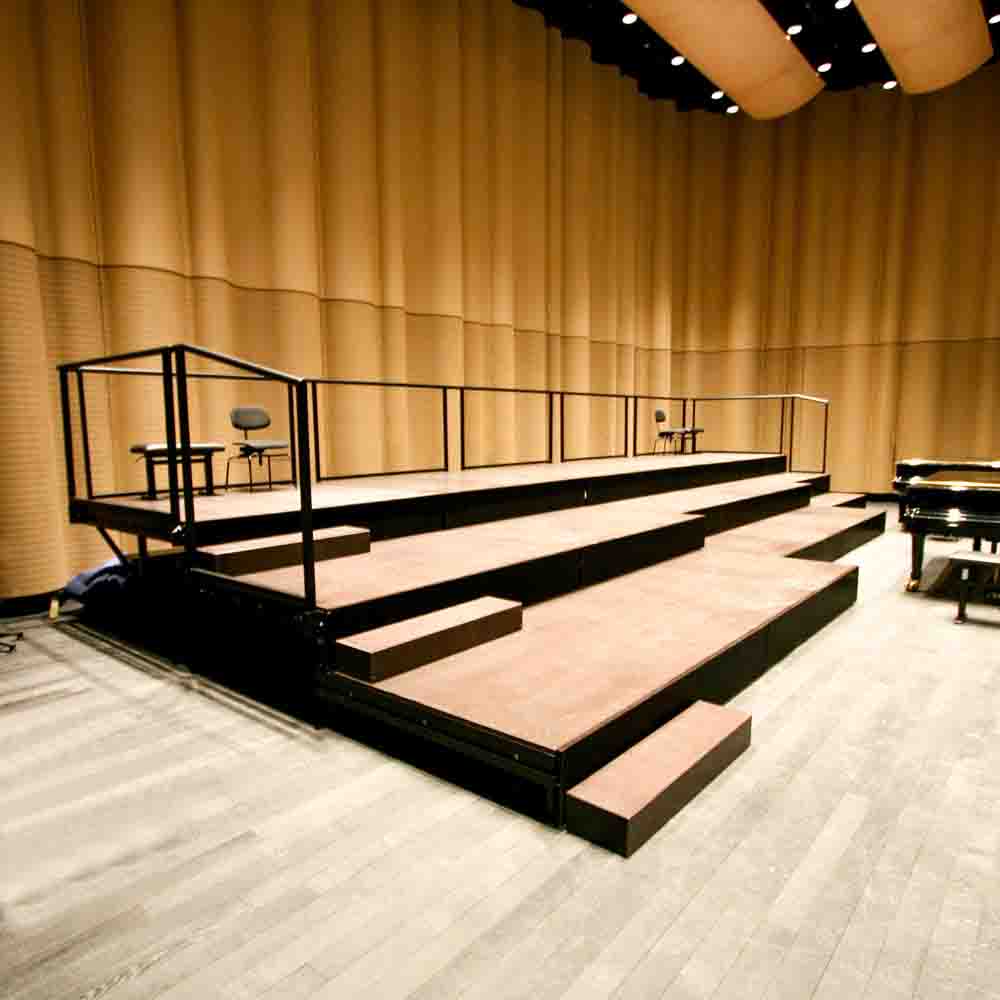

HOAC® orchestra stage
for your concert

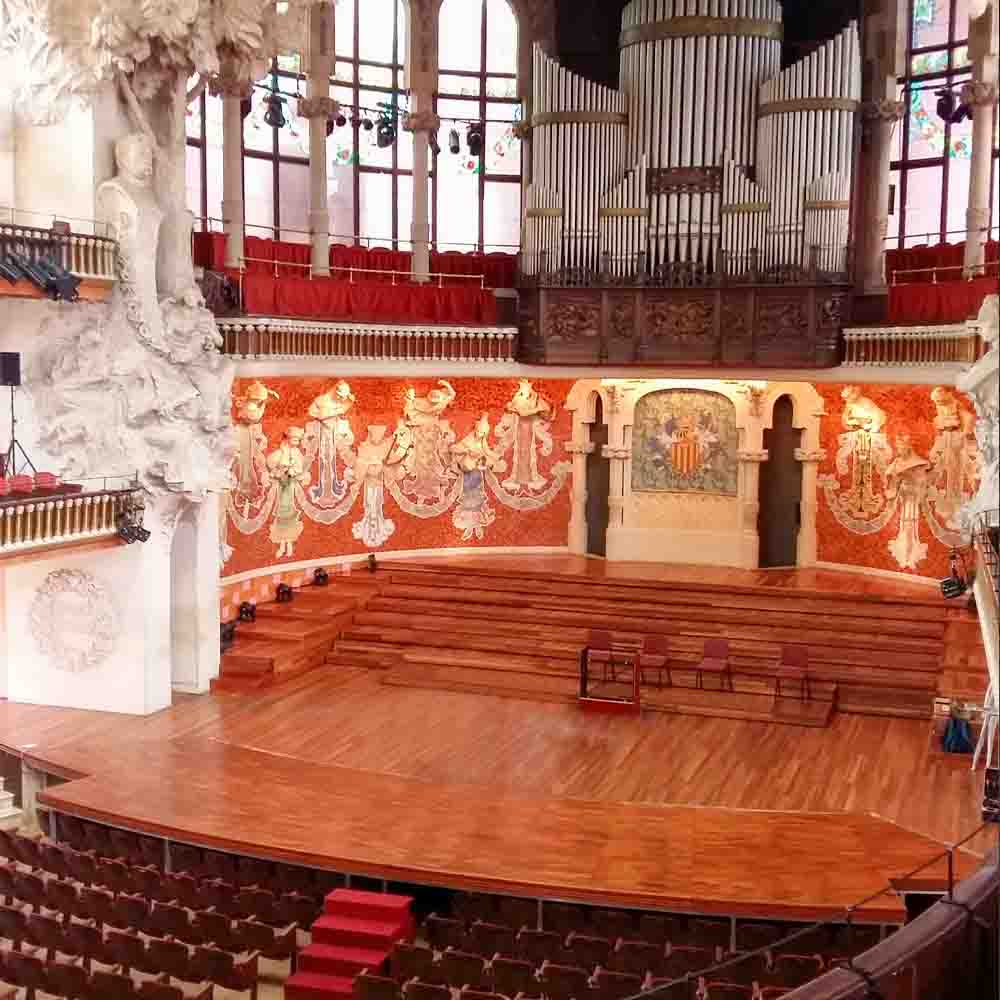

Every concert has its own orchestra line-up, and the number of instruments varies greatly. The acoustic demands are high because the sound is influenced by the resonance of different materials. A HOAC® orchestra stage combines exactly these characteristics – perfect sound and flexibility. You can select custom materials for the stage paneling to perfectly match the room acoustics, and the platform size can be adjusted quickly.
Überbauungen
Closer to the audience
With pit filler
Does your venue have an orchestra pit? Bring the stage and audience closer together for a more intimate experience. In no time, your staff can cover the orchestra pit with HOAC® aluminum system frames – up to 4 meters, even self-supporting. Our system adapts flexibly to your needs.

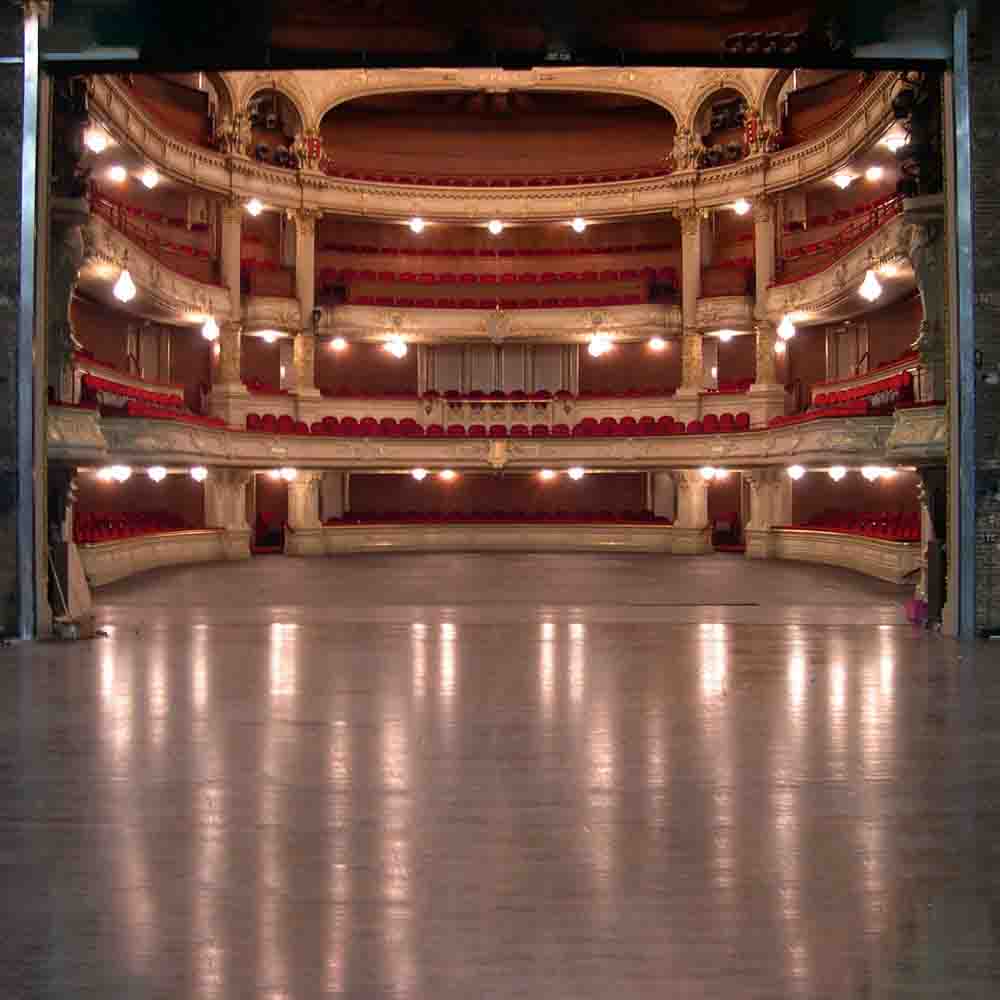

Swap perspective
with superstructures
Have you ever thought of letting the audience sit on the stage and in return the artists perform on the grandstand? Cool idea – we think so too! That’s why we developed the straight plug-in foot holder, with which you can build over any obstacle, because the feet of the frame can be positioned freely. Take a seat and enjoy a very special performance.

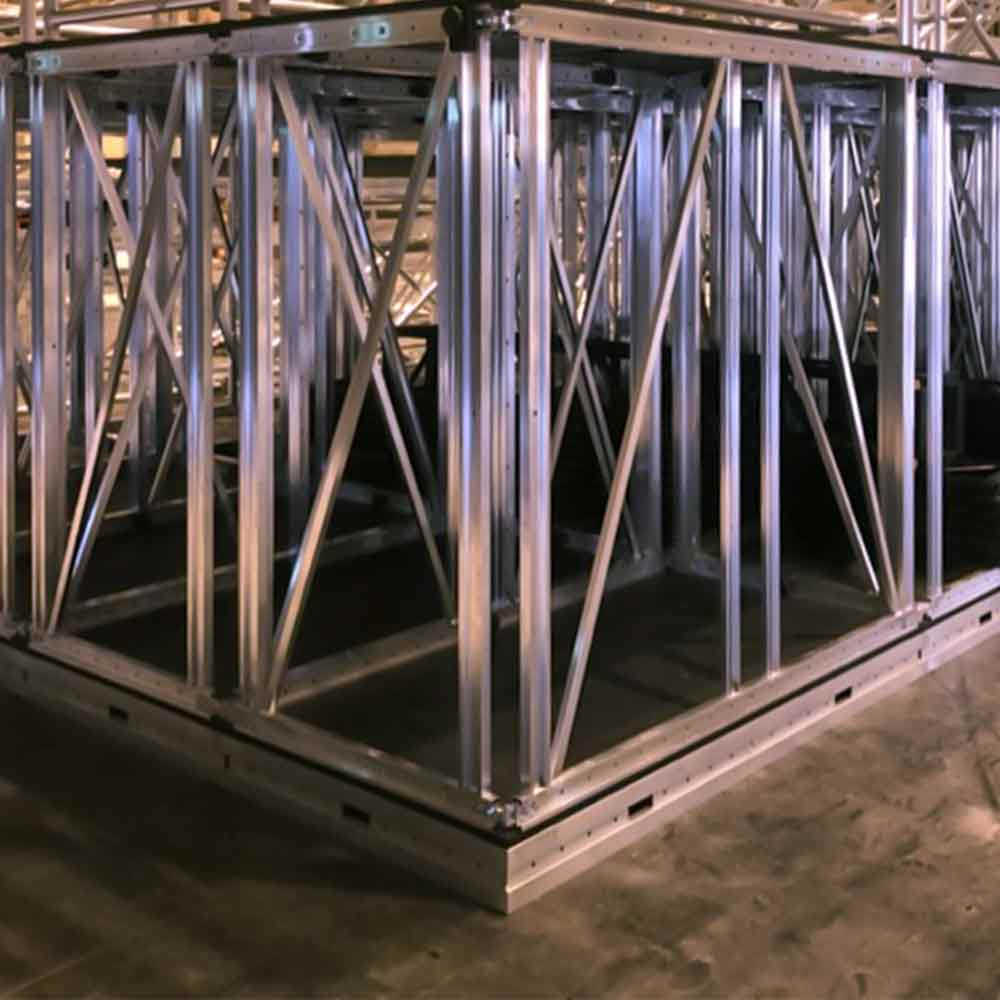

Flip2Play
Flip2Play
The modern folding practicable
Flip2Play is the new alternative to the known wooden folding platforms. Made from lightweight aluminum, you only need to unfold it, cover it, and attach the cladding with Twist2Clad – done! When folded, Flip2Play takes up 90% less storage space. This is how stage construction works – fast and easy.

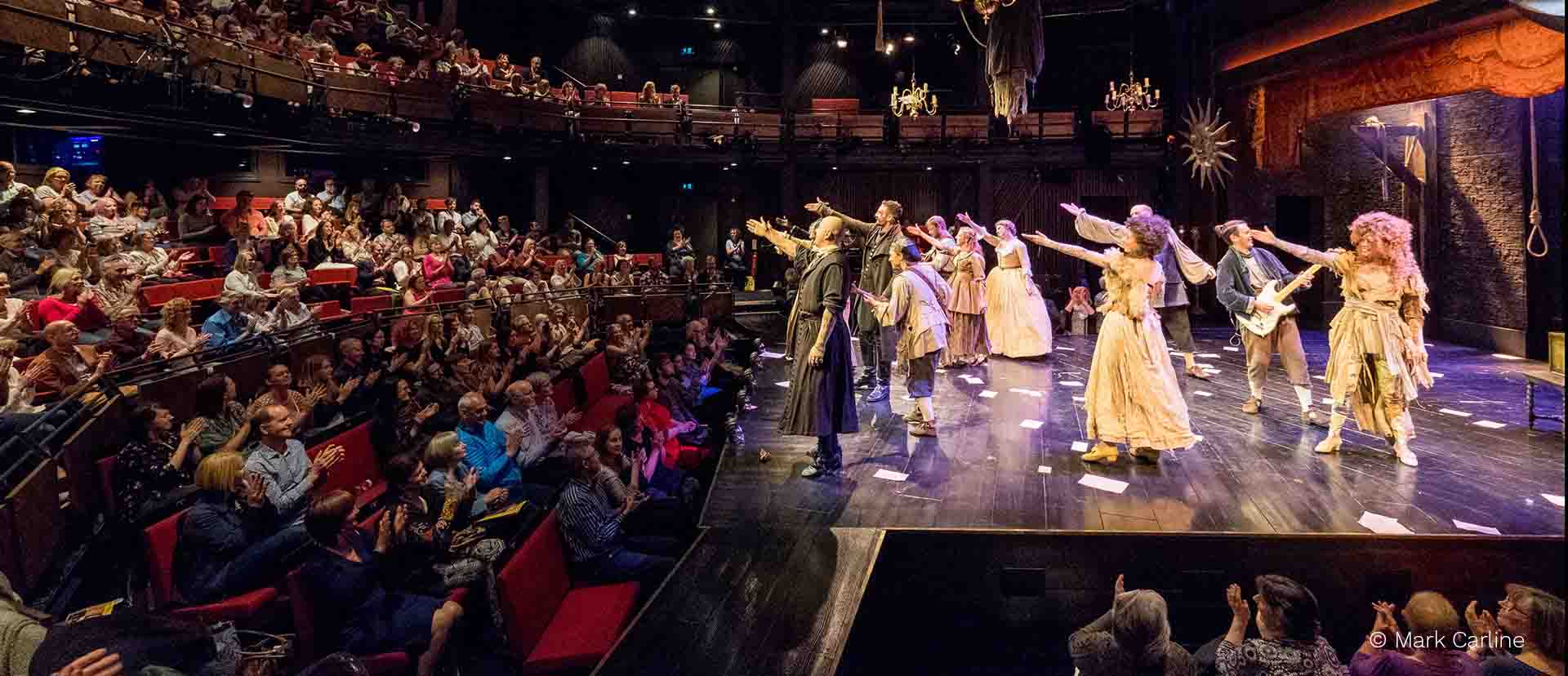

HOAC® projects worldwide
Learn more about our stages
Accessories for mobile stages
When developing the right accessories for our HOAC® frame, we have always attached importance to the fact that you can remove the accessories quickly and easily and reattach them elsewhere, anywhere, without disturbing the frame itself.
Cladding
- for front and sides of the stage riser
- wood, textile, metal
- quickly fasten with Twist2Clad
Top cover
- long-lasting with corner protection
- different surface options
- silent
Railing
- powder coated black or selected RAL color
- mounting without tools
- simply hooked on
Lifting roller
- movement of blocks or complete grandstands
Legs & Legholder
- available in different heights
- also individually height adjustable
- easy to attach with plug-in foot holder
Stairs
- variable height and width
- different surface options
- silent
Equipping and Enhancing Mobile Stages
The advantages of HOAC® mobile stages are clear: they are flexible, portable, and can be adapted to your specific requirements. Our stages are designed for lightweight and sustainable use, while ensuring safety and ease of setup. With a variety of stage platform elements and versatile accessories, HOAC® mobile stages can be customized to meet a wide array of needs.
Your stage setup is complete with HOAC® stage stairs. From performers to technical staff, everyone can access the stage safely and quickly. We offer custom solutions for stage elements, including adjustable or fixed platform legs, as well as vertical frames. Whether you need elevated platforms with adjustable heights or custom lengths, our modular design ensures stability and flexibility. Rails and guardrails are also available to enhance the safety of your setup. With professional and reliable manufacturing processes, we guarantee durable and lightweight aluminum components that are quick and easy to assemble.
HOAC® platform legs, whether square or round, provide the stability you need without compromising on flexibility. The modular system allows for portable, individual use, making the products highly sustainable for various production needs.

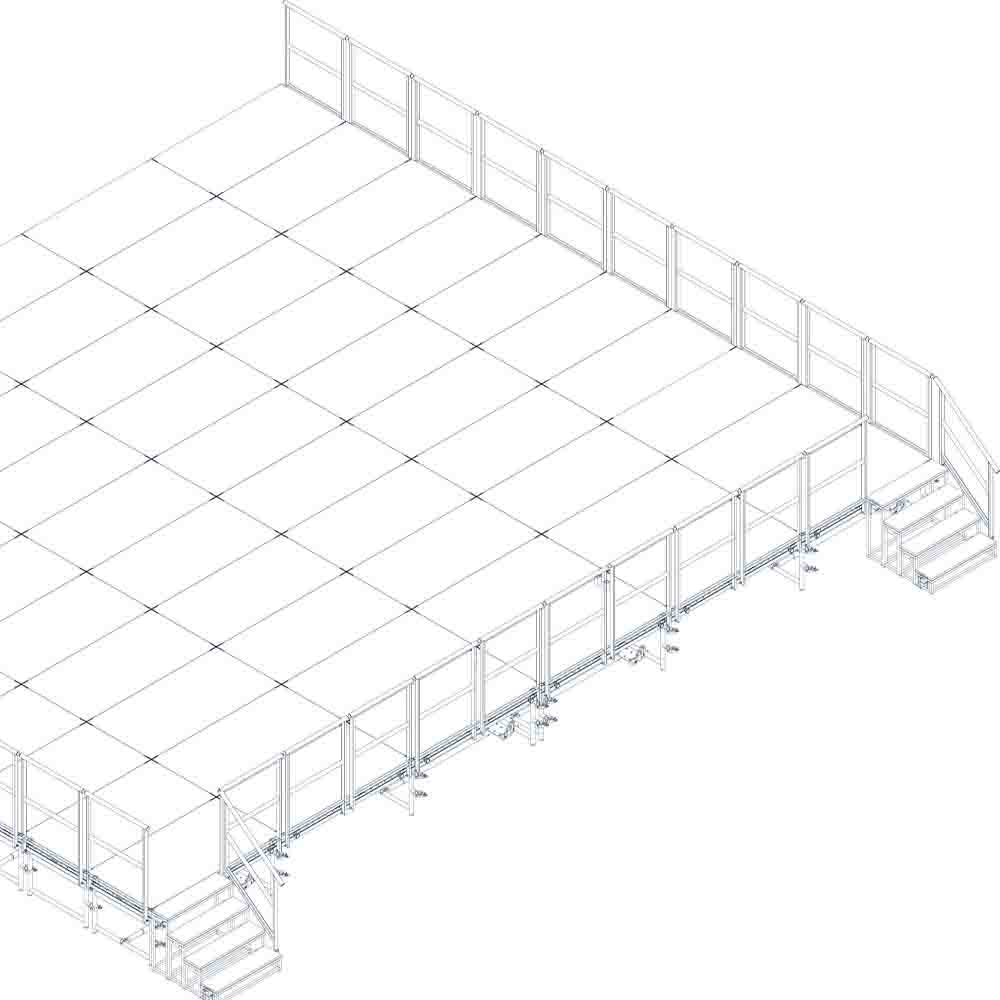

Technical information
Dimensions
Single frame: up to 6 m length and 3 m width
Frame height incl. top cover: standard 16 2/3 cm, 20 cm
Thickness wooden deck: 21 mm ( + 3 mm felt)
Unit system: metric (Meter), imperial ( Zoll)
Material
Frame: aluminum
Underconstruction: aluminum
Top cover: wood or individual
Railing: steel
Legs: aluminium
Accessories
Railings, stairs, leg, lifting roller, top cover and cladding
Other Technologies or sizes upon request.
We will gladly advise you.
Custom made
Any measurement is possible. We manufacture your platform at our site in Germany.
Standard load capacity
Our lightweight offers 500 – 750 kg/m², other load capacities on request.
Construction design
Straight, round or square, any design of grandstand is possible.
Any questions or special requests?
Please feel free to contact us. We advise you without obligation. No matter which sizes your project will be, it is always a pleasure for us to see your project.
Made in Germany
As a welding specialist we manufacture our aluminium stages at our site in Germany.
Distribution worldwide
From Europe to China to the United States – we deliver our stages to any place in the world.lt.
Installation & service
You need a supervising or maintenance? Our installation team supports you worldwide.
