HOAC® Mobile Turntable

Your vision – our mission

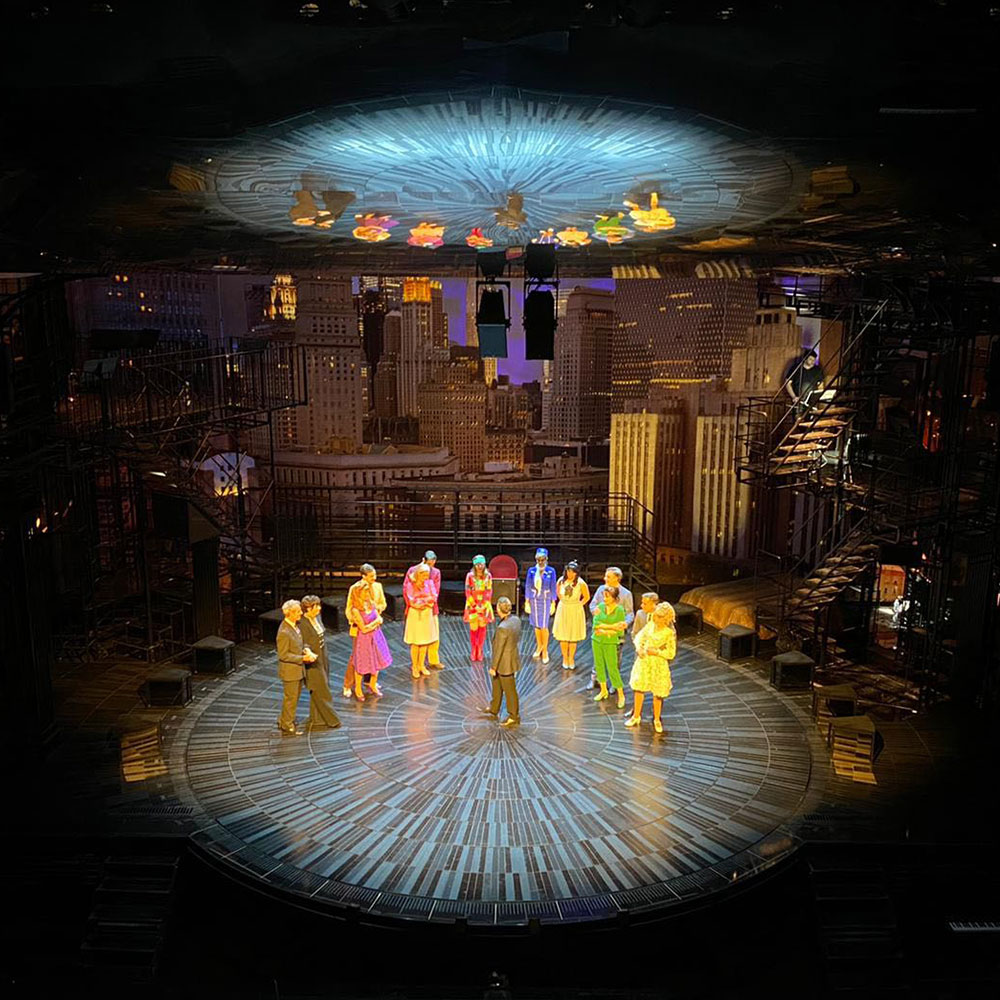

Drehscheiben die Loesung fuer drehende Buehnen
Move your world

HOAC® TURNTABLES – YOUR SOLUTION FOR REVOLVING STAGES

A flexible stage design is important to you? Then our mobile turntable is the best solution. You can change the scenery on your stage in no time at all. Our modular system offers solutions for every budget and can be expanded on demand.

We make your dream come true and are always at your side for your project.

Our quality promise to you

03 Icon nach mass

CUSTOM MADE
Any size up to 30 metres available, integrated into a stage wagon or divided into several rings.

3 Icon Schnell Uhr

FAST & MODULAR
This makes assembly fun. Your turntable is up and running in no time.

03 Icon Leise

SILENT
The friction-locked and form-fitted connection guarantees noiselessness.

3 Icon Sicherheit

SAFE & CERTIFIED
As a specialist welding company, we manufacture our products in accordance with DIN EN 1090 1-3 and ISO 3834-2.

Puzzle Drehscheibe Baukastensystem

THE MODULAR FRAME SYSTEM
TODAY TURNTABLE, TOMORROW STAGE

With the HOAC® System Frame you can customize your need for your production.

  • Use our system frame in turntables, stages, grandstands, etc.
  • Easy extension or reduction of turntable sizes.
  • Easy use of drive units in turntables or stage wagons.

The innovative and patented products offer maximum flexibility. At a time when sustainability and cost-effectiveness are becoming increasingly important, HOAC® System Frames offer just that – a reusable system for a wide range of applications.

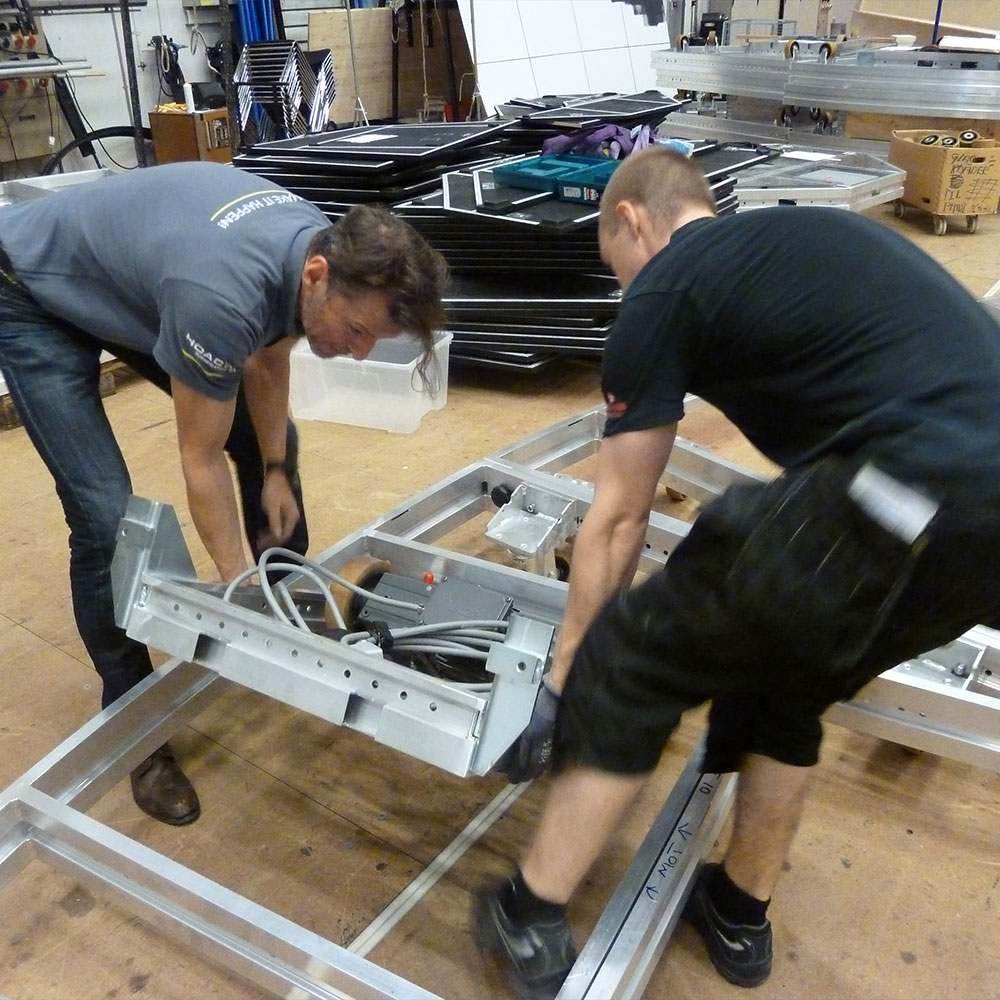

Aufbau Drehscheibe

EASY SET UP OF TURNTABLES

Depending on the size of the mobile turntable, it can be set up and dismantled with only 2 persons in a very short time. First the frames are screwed together using our link blocks and then the cables for the control system need to be connected. Finally the wooden decks are positioned on top and the turntable is ready for use.

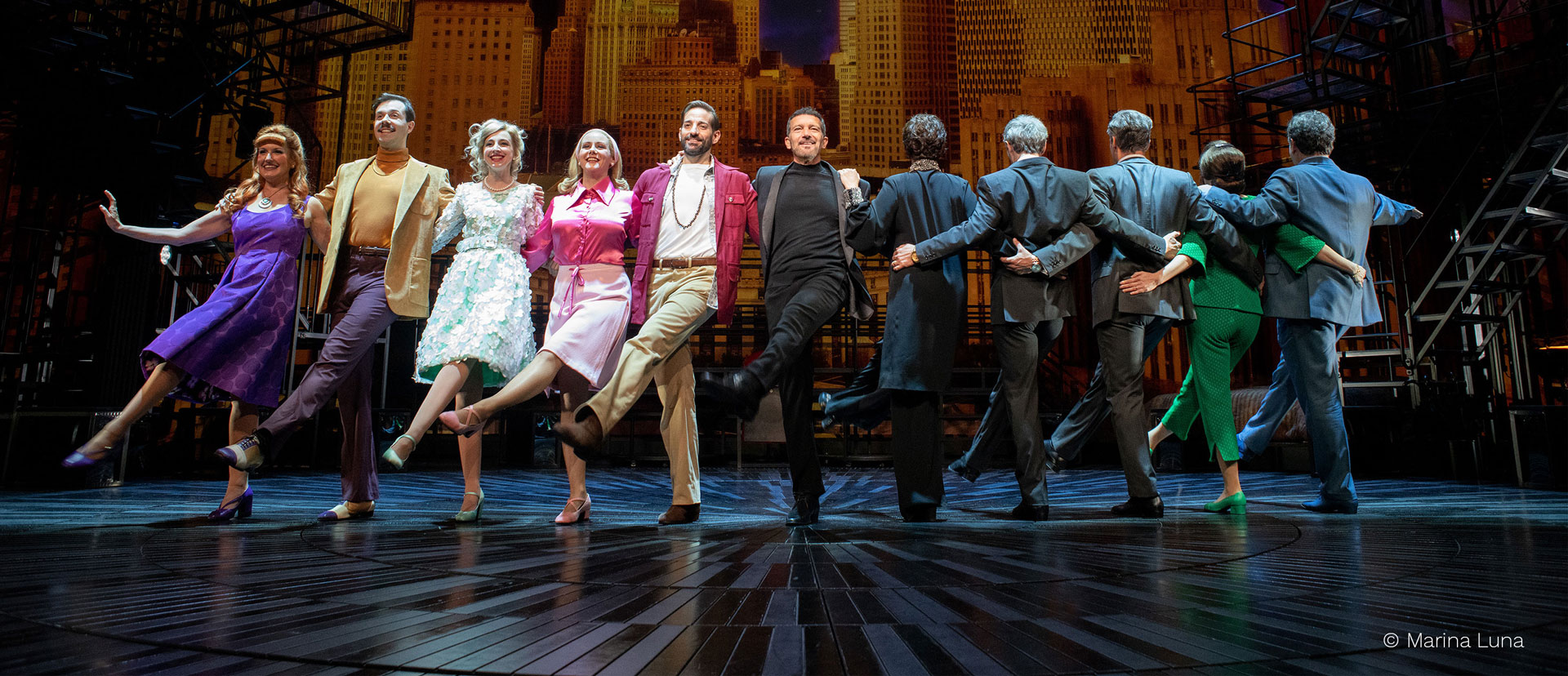

HOAC® projects worldwide

Learn more about our turntables

Accessories for mobile turntables
Motor Drehscheibe

Drives

  • performance data according to customer requirements
  • standard installation in 1 x 1 m frame
  • silent
Schleifring Drehscheibe

Slip ring

  • power for motors
  • power for lighting
  • different versions
Zarge 2

Extensions

  • for larger turntables
  • for conversion / superstructure
  • durable and modular
13 Deckplatte

Top cover

  • long-lasting with corner protection
  • different surface options
  • including locking device
Rad

Wheels

  • different load capacity options
  • single or double swivel castor
  • turtle wheel
Lagerwagen

Storage cart

  • standard wagon
  • custom made
Technical information

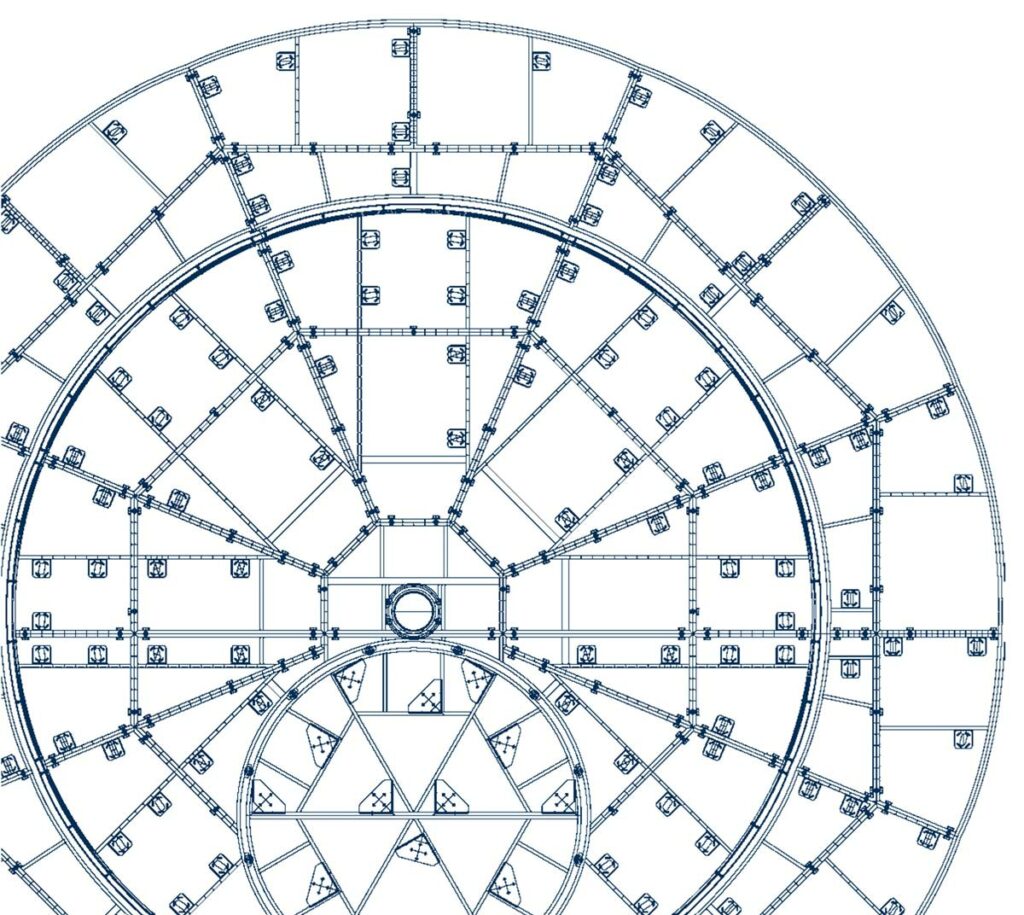

Drehscheibe technische daten

DIMENSIONS
Diameter: 1,5 m to 30 m, 5 – 100 ft.
Height: 200 mm or more

SET UP
Pieces of cake shape or standard frames with curved edge pieces.

STANDARD LOAD CAPACITY
Dynamic: 250kg/m²
Static: 500 kg/m²

FURTHER DATA
Made from Aluminium
Variable speed range

Other Technologies or sizes upon request. We will gladly advise you.

Icon Antrieb

DRIVE

Friction drive, inside or outside.

12 Icon Steuerung

CONTROL

Simple switching operation or programmable wired or radio controlled.

Icon Strom Batterie Direktrstro

POWER SUPPLY

Battery or cable driven possible.

Fragen

YOU HAVE QUESTIONS OR SPECIAL REQUIREMENTS?

Then get in Contact with us, we will advise you without obligation. Whether small, large or fancy, we look forward to your project

Key Facts   Made in Germany

MADE IN GERMANY
Certified in Welding on European standards. We manufacture our revolving stages  at our site in Germany.

Key Facts   Weltweiter Vertrieb

WORLDWIDE SALES
From Europe to China to America – we ship our Turntables all over the world.

Key Facts   Montageservice

INSTALLATION & SERVICE
You need a supervising or maintenance? Our installation team supports you worldwide.
