HOAC® Roll Stage
Your vision — our mission
Concerts, halls, arenas
RollDex — The Roll Stage for your event
Time is an important factor for events and tours. Therefore, a safe and quick solution for the assembly is needed. Because it is not permitted to set up the rig and the stage on top of each other at the same time. The solution: RollDex!
Stage and rig are assembled parallel next to each other. Later, the stage can be pushed under the rig because of the rolls.

Our promise of quality to you

Zeit Sparen
Paralleler Aufbau, Rigg und Bühne nebeneinander. Untereinander ist nicht zulässig.
SAFE & CERTIFIED
As a welding specialist we manufacture according to DIN EN 1090 1-3 and ISO 3834-2.
70 Minutes
A well-coordinated team needs 70 minutes to set up a 200 m² stage.
flexible dimensions
Width and length expandable and with RollDex Flex also in height.
Setup HOAC® RollDex
200 m2 in only 70 minutes
The team of this Germany tour manages to set up the 200 m² RollDex Tour stage within 70 minutes.
RollDex Flex
The choice for flexible solutions
RollDex Flex offers maximum flexibility, so that existing individual parts of grandstands, stages or turntables can also be used for the RollDex Flex stage.
SUSTAINABLE
All parts can be used for stages, grandstands, turntables, etc.


Rigging With
HOAC® Trusses
Yesterday Vienna, today Munich and tomorrow Warsaw? No problem! RollDex Tour has been specially optimized for touring and with the permanently installed rollers, set-up is particularly quick.
TRANSPORT-OPTIMIZED
The product dimensions of 1.2 x 1.2 m and 2.4 x 1.2 m are specially adapted for truck transport.

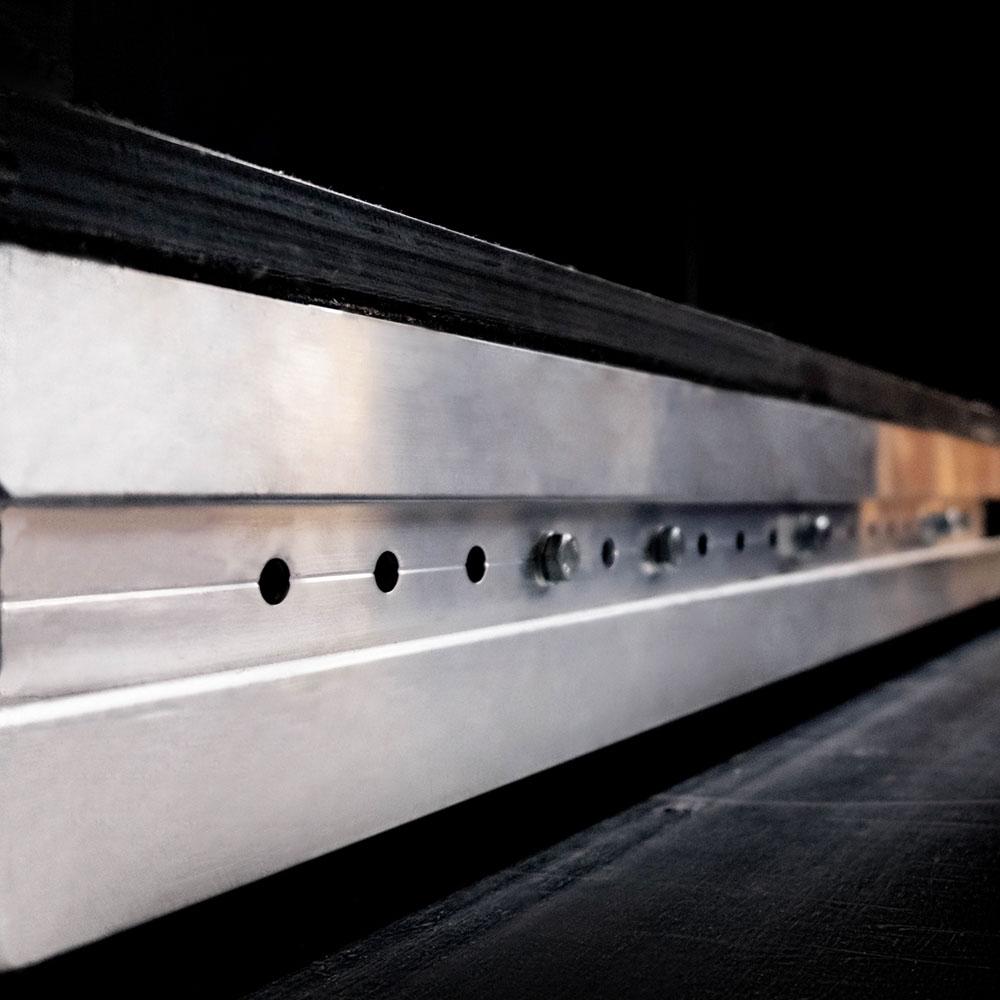

HOAC® Systemframe the Original
Learn more about RollDex
Accessories for RollDex
Cladding
- for front and sides of the stage
- made of wood, fabric or metal
- attached faster with Twist2Clad
Cover plate
- long-lasting with corner protection
- different surface options
- silent
Railing
- powder coated black or selected RAL color
- mounting without tools
- simply hooked on

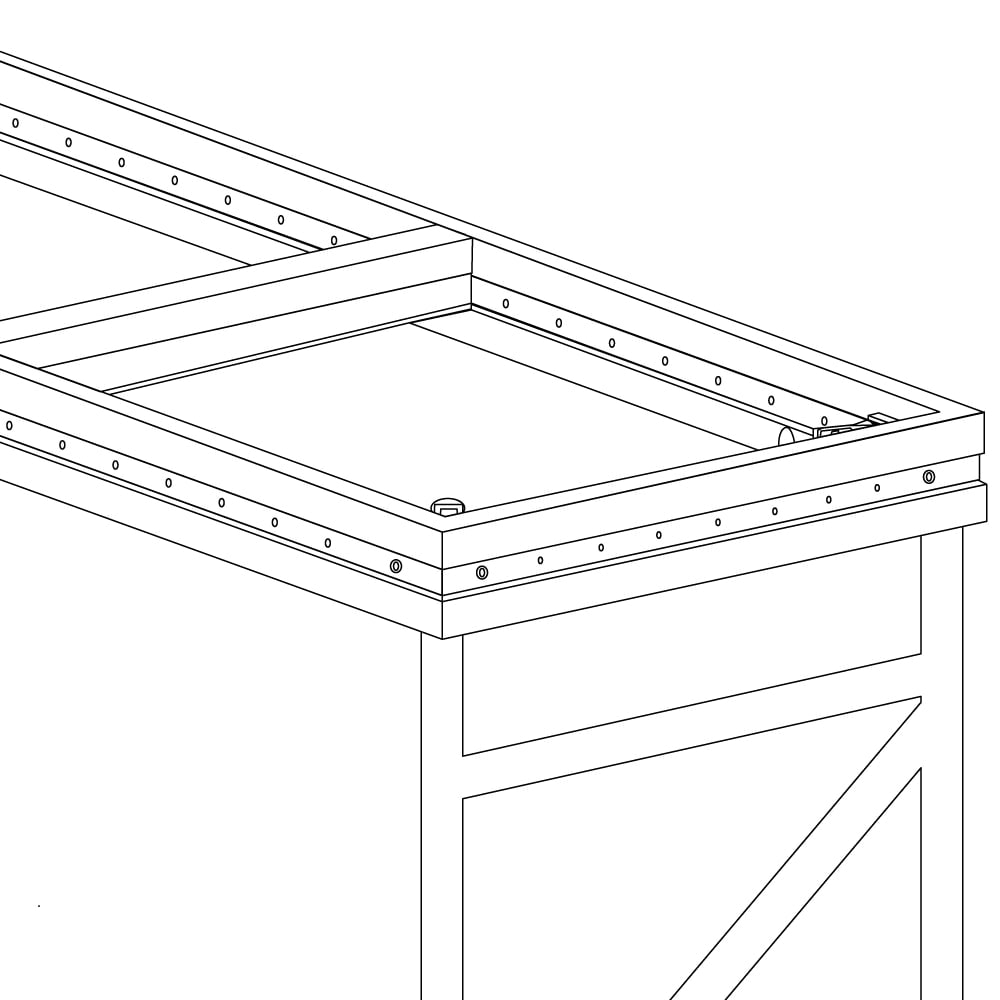

Technical information

Dimensions

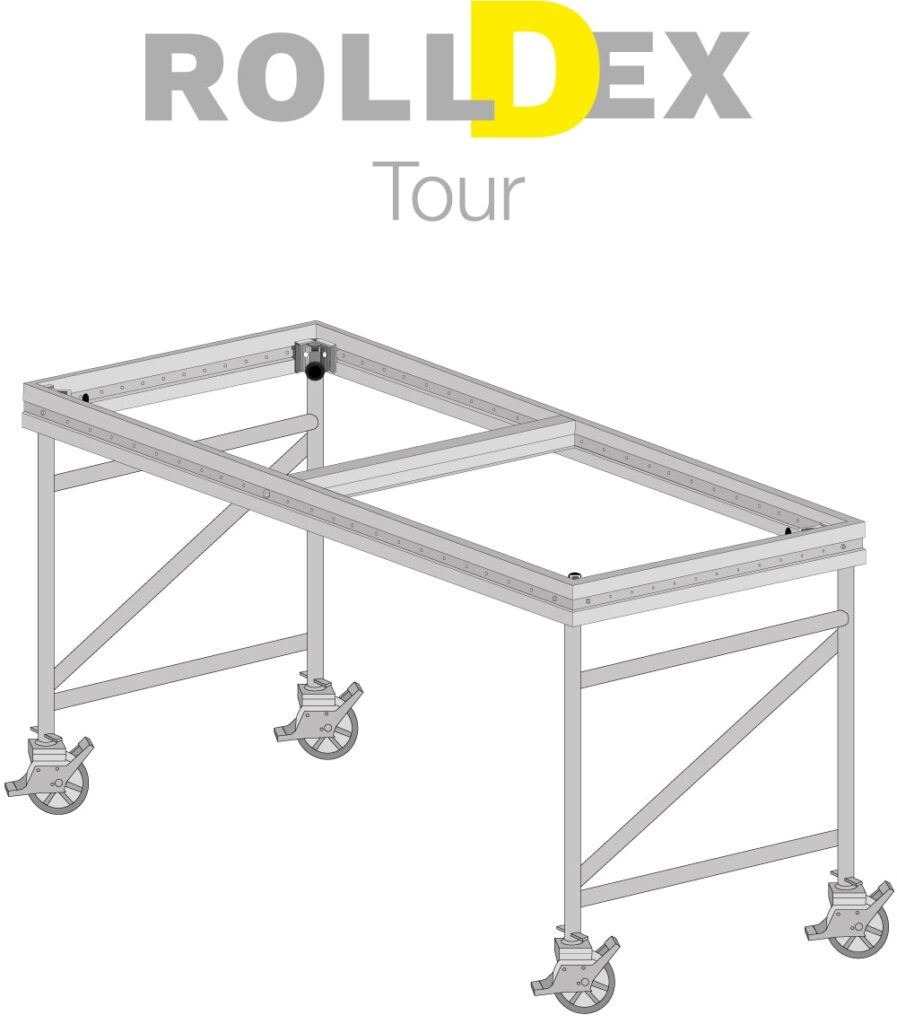

Rolldex Tour: 1.2 x 1.2 m und 2.4 x 1.2 m

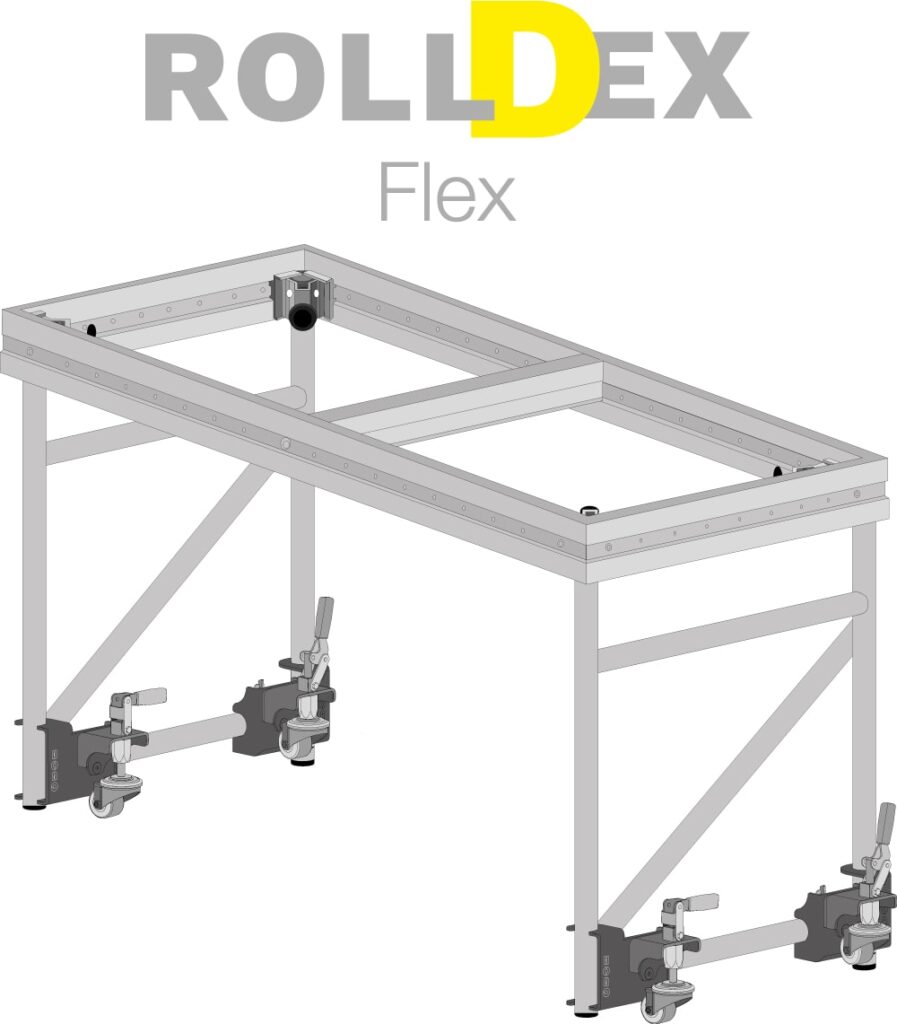

Rolldex Flex: 1 x 1 m und 2 x 1 m
System frame height incl. cover plate: standard 16 2/3 cm
Thickness wooden deck: 21 mm ( + 3 mm felt)
Material
Frame: aluminum
Underconstruction: aluminum
Top cover: wood or individual
Railing: steel
Legs: aluminium
Other dimensions and shapes available on request. We will be happy to advise you!

Any questions or special requests?
Please feel free to contact us. We advise you without obligation. No matter which sizes your project will be, it is always a pleasure for us to see your project.
Made in Germany
As a welding specialist we manufacture our Aluminium Truss System at our site in Germany.
Distribution worldwide
From Europe to China to the United States – we deliver our Aluminium Truss System to any place in the world.
Installation & service
You need a supervising or maintenance? Our installation team supports you worldwide.
